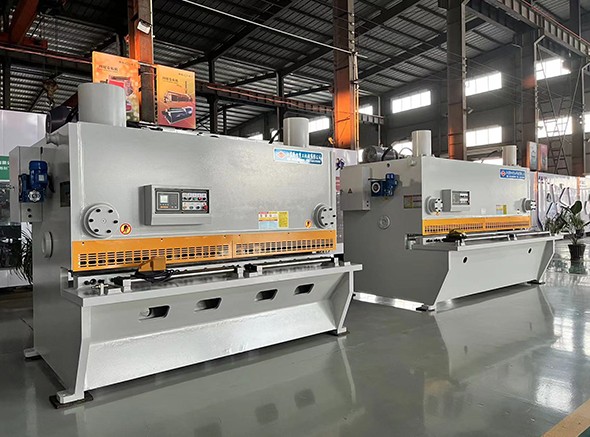

Service Product introduction:
1. The machine adopts frame steel plate welding structure, vibration aging stress relief, with good rigidity and stability;
2. With a mechanical cutting edge gap adjustment device, fast, accurate and convenient.
3. Rectangular blade, four cutting edges can be used, long service life. The shear Angle can be adjusted to reduce the distortion of the sheet material, and the shear Angle can be adjusted according to the size of the plate thickness to greatly improve the shear effect.
4. The tool holder positioning adopts rolling guide rail to eliminate the gap of guide rail, achieve gap-free operation, and improve the shear quality. The upper tool holder adopts the inclined structure, which is convenient for blanking and can improve the accuracy of work.
5. A motorized rear stop is provided, and the digital display visually displays the position of the rear stop.
6. Adopt advanced integrated hydraulic system, pneumatic linkage return, stable and reliable work, high strength, good rigidity.
Specifications:
| Model number | Can cut the plate thick mm |
Can cut the plate wide mm |
Number of trips min-1 |
Rear stop travel mm |
Main motor power KW |
| QC11Y-6x2500 | 6 | 2500 | 8-15 | 580 | 7.5 |
| QC11Y-6x3200 | 6 | 3200 | 8-15 | 580 | 7.5 |
| QC11Y-6x4000 | 6 | 4000 | 8-15 | 580 | 7.5 |
| QC11Y-8x2500 | 8 | 2500 | 8-15 | 580 | 11 |
| QC11Y-8x3200 | 8 | 3200 | 8-15 | 580 | 11 |
| QC11Y-8x4000 | 8 | 4000 | 8-15 | 580 | 11 |
| QC11Y-12x2500 | 12 | 2500 | 6-15 | 800 | 15 |
| QC11Y-12x3200 | 12 | 3200 | 6-15 | 800 | 15 |
| QC11Y-12x4000 | 12 | 4000 | 6-15 | 800 | 18.5 |
| QC11Y-16x2500 | 16 | 2500 | 5-12 | 800 | 18.5 |
| QC11Y-16x3200 | 16 | 3200 | 5-12 | 800 | 18.5 |
| QC11Y-16x4000 | 16 | 4000 | 5-12 | 800 | 22 |
| QC11Y-20x2500 | 20 | 2500 | 5-10 | 800 | 30 |
| QC11Y-25x2500 | 25 | 2500 | 5-10 | 1000 | 37 |
| QC11Y-30x2500 | 30 | 2500 | 5-10 | 1000 | 45 |
