Service Product introduction:

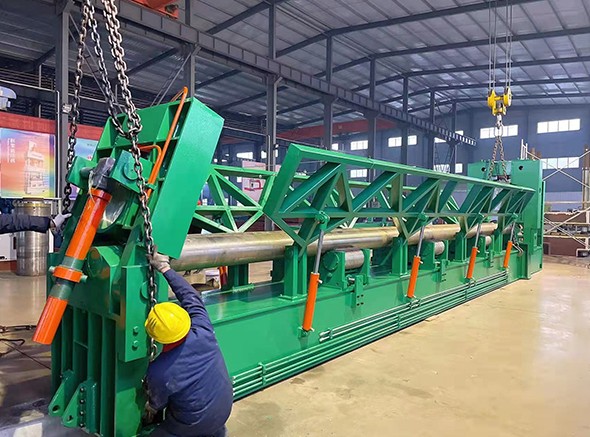

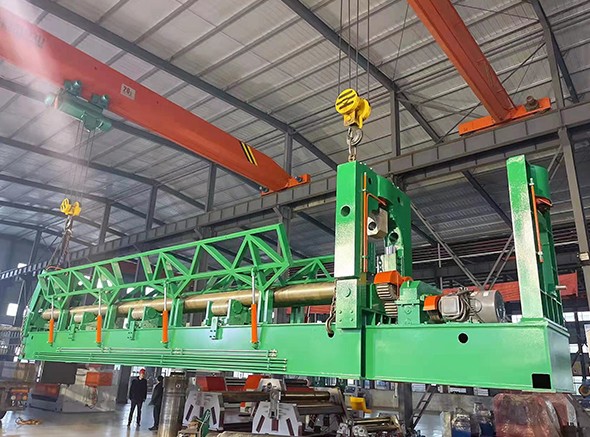

This machine is mainly used for winding all kinds of super long tanks.
The machine belongs to the hydraulic three-roll plate rolling machine, the upper roller can move vertically, the vertical lifting is hydraulic transmission, the lower roller is rotary drive, and the output gear of the reducer engages with the upper roller gear to provide torque for the coil plate, and the lower roller is provided with a supporting roller and can be adjusted. The upper roll is shaped like a drum to improve the straightness of the product, which is suitable for the rolling of the tank with various section shapes of the super long specifications.
The hydraulic side support and top support can be optional to support the variable workpiece when rolling the large-diameter sheet, which is convenient for the rolling of the large-diameter sheet through the workpiece.
Specifications:
| Specification and model | Maximum coil thickness mm |
Maximum roll width mm |
Upper roll diameter mm |
Main motor power KW |
| W11Y-6×6000 | 6 | 6000 | 360 | 15 |
| W11Y-8×6000 | 8 | 6000 | 380 | 15 |
| W11Y-8×8000 | 8 | 8000 | 420 | 18.5 |
| W11Y-8×9000 | 8 | 9000 | 480 | 18.5 |
| W11Y-8×10000 | 8 | 10000 | 520 | 18.5 |
