Product introduction
Specifications

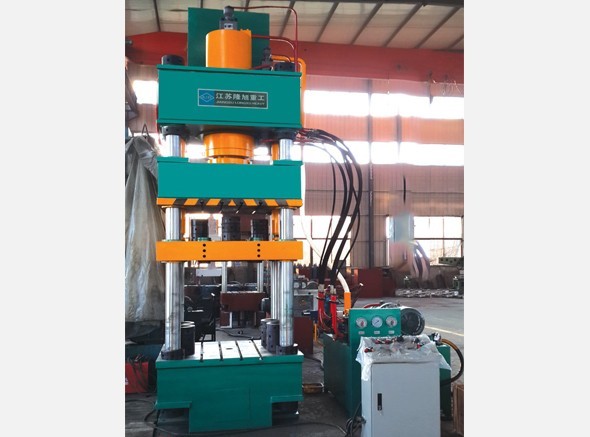

Product introduction:

Performance characteristics:

Computer optimized design, fuselage can be used four-column or frame structure. Four-column structure, simple, economical and practical; Frame type tie rod preload structure, high precision, good rigidity, four-corner eight-sided guide rail, high guiding accuracy, strong anti-biased load ability; New cylinder sealing element, high reliability, long life; Moving table, convenient mold replacement; Drawing and holding sliders can be connected by positioning pins to realize the integrated safety device of single-action process operation, such as the lower cylinder cavity support loop, the upper and lower cylinder cavity interlock loop, etc. Imported PLC control, high sensitivity.

Application field:

This series of hydraulic presses is suitable for all deep drawing processes, especially for the following fields: all kinds of containers (stainless steel, aluminum, enamel bath pressure vessels, stainless steel sink); Various automobile covering parts; Household appliance parts; Kitchen utensils; Tractor, motorcycle, aerospace, aviation, chemical and other industries.

Optional accessories:

Blanking buffer device. Slider proportional speed regulating device, blanking slider proportional speed regulating device, light curtain safety protection device. Oil cooling device mold protection device, displacement sensing device, touch type industrial display, punching device (hydraulic or mechanical), die change with floating guide rail and rolling frame mold fast clamping mechanism, lubrication device.

Specifications:

Parameter name		Unit	Double action sheet drawing hydraulic press
Parameter name		Unit	YLX28—63／100	YLX28—100／150	YXL28—200／300	YLX28—315／400	YLX28—400／630	YXL28—630／1030	YXL28—1200／2000
Nominal force		KN	1000	1500	3000	4000	6300	10300	20000
Drawing force		KN	630	1000	2000	3150	4000	6300	12000
Blank holder force		KN	300	500	1000	1000	2300	4000	8000
Ejecting force		KN	190	400	400	630	1000	2000	4000
Maximum working pressure of liquid		MPa	25	25	25	25	25	25	25
Stretch the slider stroke		mm	500	600	700	800	800	1000	1500
Flange slider stroke		mm	300	350	400	400	450	500	700
Stretch the slider size	Left-right	mm	560	980	980	1260	1400	2500	3800
Stretch the slider size	Front and rear	mm	500	700	900	1160	1400	1500	1900
Flange slider size	Left-right	mm	560	980	980	1260	1400	3200	4500
Flange slider size	Front and rear	mm	500	700	900	1160	1400	2200	2500
Table size	Left-right	mm	560	980	980	1260	1400	3200	4500
Table size	Front and rear	mm	500	700	900	1160	1400	2200	2500
Stretch the slider opening height		mm	1100	1300	1400	1500	1700	2200	2500
Flange slider opening height		mm	700	800	900	1000	1100	1200	1800
Stretch slider travel speed	Short downlink	mm/s	120	100	100	100	100	150	180
	Professional	mm/s	20	15	15	10	10	10	15
	Backhaul	mm/s	80	80	80	80	80	100	120
Machine dimensions	Left-right	mm	2600	3000	3300	3900	5600	5700	6400
	Front and rear	mm	1580	1510	3400	3500	3600	3800	3500
	Altitude above ground	mm	3200	3165	4330	4680	5600	10300	11000
Total motor power		KW	7.5	11	22	22	44	60	160
