Service Product introduction:

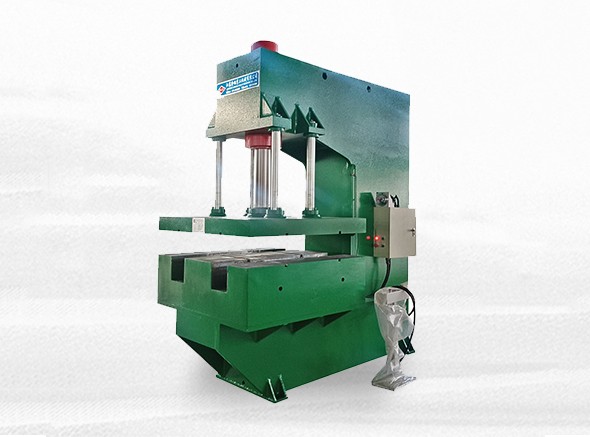

The fuselage adopts a "C" type structure, welded with high-quality steel plates, and tempered to eliminate stress after welding.
The main cylinder has the function of maintaining pressure, and its pressure is displayed by the pressure gauge and adjusted by the remote pressure regulator.
The stroke control of the slider is controlled by the contactless stroke switch, which can be adjusted arbitrarily.
The guide column guide sleeve is made of composite material to avoid strain and wear between the column and the guide suite.
The T-slot distribution of the machine is designed according to the general requirements (special requirements are designed according to the factory).
Hydraulic system adopts advanced plug-in integrated system; Equipped with independent oil inlet filter device.
Specifications:
| Item | Single position | YLX41-10 | YLX41-16 | YLX41-25 | YLX41-40 | YLX41-63 | YLX41-100 | YLX41-160 | |
| Nominal pressure | KN | 100 | 160 | 250 | 400 | 630 | 1000 | 1600 | |
| Slide travel | mm | 400 | 400 | 500 | 500 | 500 | 500 | 500 | |
| Maximum opening height | mm | 630 | 630 | 630 | 710 | 800 | 800 | 1000 | |
| Maximum working pressure of liquid | MPa | 25 | 25 | 25 | 25 | 25 | 25 | 25 | |
| Table effective area (left and right * front and back) | mm | 410x420 | 450x500 | 510x580 | 560x560 | 630x600 | 710x600 | 800x600 | |
| Slider speed | Suppress | mm/s | 25 | 20 | 20 | 20 | 15 | 12 | 10 |
| Backhaul | mm/s | 80 | 80 | 80 | 80 | 70 | 60 | 80 | |
| Motor power | KW | 4 | 5.5 | 5.5 | 7.5 | 7.5 | 11 | 15 | |
